    Temperature Humidity Test Chamber With 480L -70 Degree With LCD Display

    Ask Lasest Price
    Brand Name : lixian
    Model Number : HZ-2004A
    Certification : CE
    Price : negotiate
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50 sets per month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

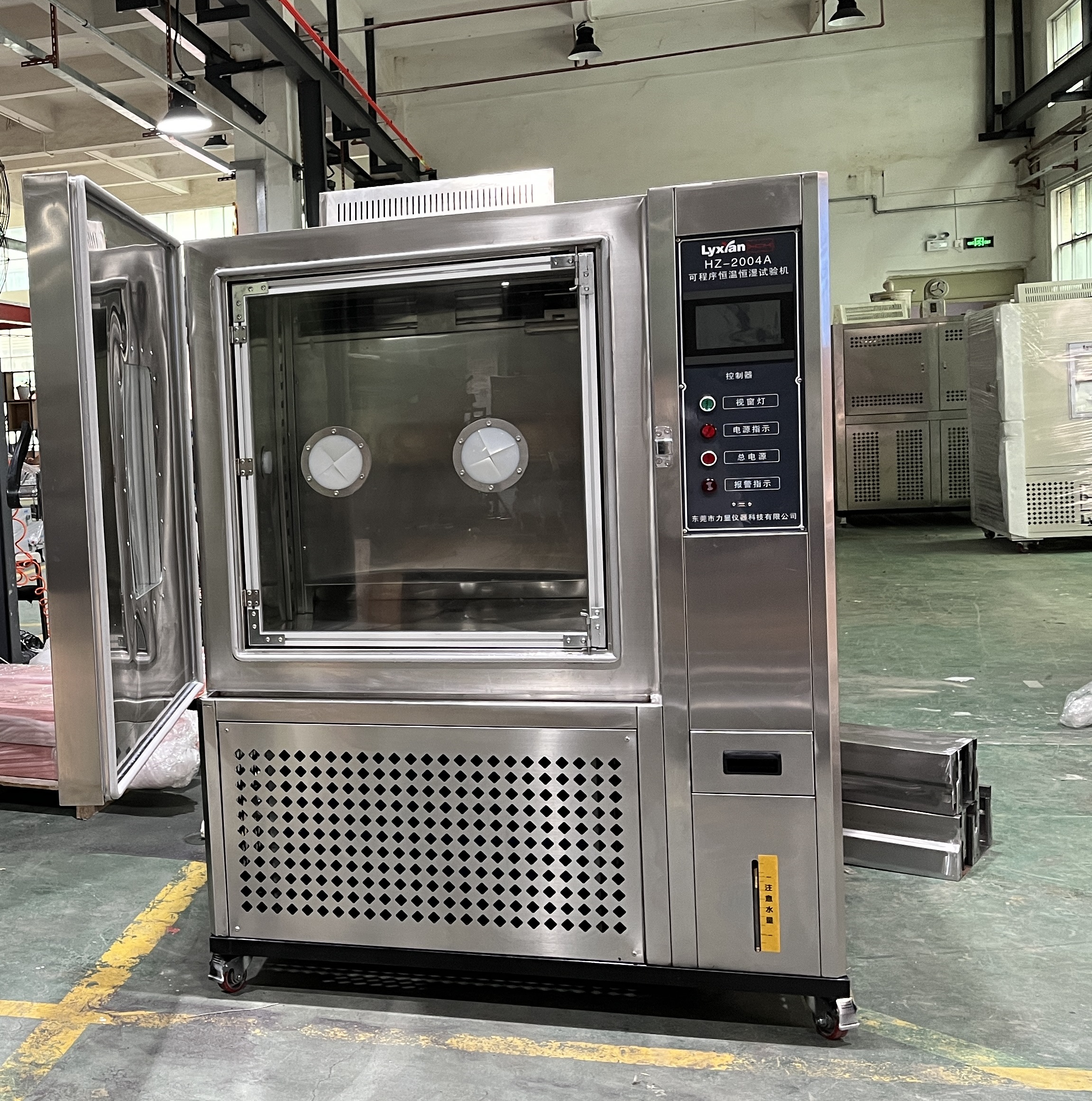

    Temperature Humidity Test Chamber With 480L -70 Degree With LCD Display

    Frequency Conversion Temperature And Humidity Test Cabinet Environmental Testing Machine IEC68-2-03 -70C-+100C HZ-2004A

    Temperature And Humidity Test Chamber Equipment summary:The machine is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.


    Temperature And Humidity Test Chamber technical parameter

    Model(HZ-2004A)80-1000
    Temperature range-70 degree ~ +100(150) degree
    Humidity range20%~98%R.H.
    Accuracy/ uniformly±0.1 degree ±0.1%R.H./ ±1.0 degree ±3.0%R.H.
    Accuracy / volatility±1.0 degree ±2.0%R.H. / ±0.5 degree ±2.0%R.H.
    Heating / cooling time

    About 4.0/min(heat),about 1.0/min(cool) ( 5~10/mm is

    the specific condition )

    Inside materialStainless steel SUS 304 #
    Insulation materialHigh-temperature high-density amino acid ethyl ester foam insulation materials,
    Cooling system

    Air-cooled/ single-stage compressor(-20 degree) , wind,

    water cooled/two-stage compressor(-40~-70 degree)


    1. International Electrotechnical Commission Standard:

    IEC68-2-03_test method Ca_Steady damp-heat

    IEC68-2-01_test method A_cold


    2. USA Semiconductor Industry Standard:

    JESD22-A101-B-2004 Constant temperature and humidity test

    JESD22-A103-C-2004 High Temperature Storage Test


    3. Japanese Industrial Standard:

    JIS C60068-2-3-1987 test method Ca: Steady damp-heat

    JIS C60068-2-2-1995 test method B:dry heat


    Detailed Images


    Temperature And Humidity Test Chamber Applicable industries:

    Applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.
