    Vertical Leather Testing Equipment Low Temperature D1593 AC380V

    Ask Lasest Price
    Brand Name : Lixian
    Model Number : HZ-3011b
    Certification : CE, ISO
    Price : USD 800~3000 Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets per month
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    Vertical Leather Testing Equipment Low Temperature D1593 AC380V

    Leather Testing Equipment Vertical Low Temperature Testing Machine D1593 Standard Normal Temperature ~ -30℃

    Equipment Overview

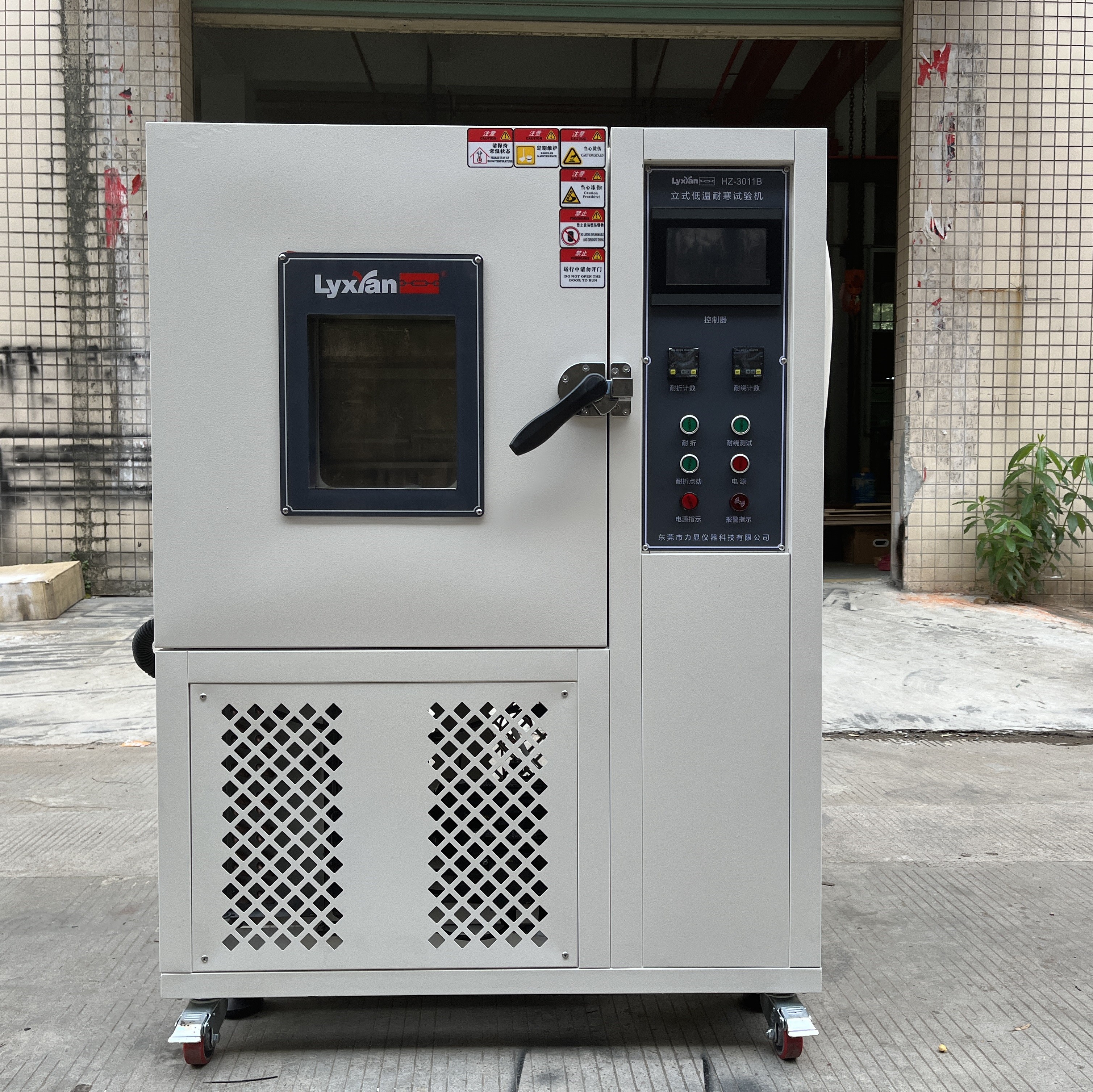

    HZ-3011B Vertical low-temperature testing machine is a machine which adopt vertical design, do not have to bend over to grip specimen, easy to operate, thus more handy, it used to test the finished shoes, rubber, plastics, shoe soles, synthetic leather and other material in a cryogenic or cool regions environment. The machine is made of stainless steel, and can install various fixture to suit different requirements.


    Technical Parameters

    ModelHZ-3011B
    StandardASTM-D1790,D1593,JIS-K6545
    Inside size D×W×H400×500×400mm(L*W*H)
    fixtureBased on actual demand, such as sole folding, leather folding and shoes folding
    indexTemperature rangeNormal temperature ~ -30℃
    uniformity≤±0.5℃/.+2℃-3℃
    Cooling time-25℃~-30℃(about 80min)
    Standard collocationa set of Multi-heated glass window attached lighting, testing product shelf 2 pcs, test leads holes (25,50 mm) 1 pcs
    Safe protectionLeak current, short circuit, over temperature, motor overheating, over-pressure compressor, overload, over-current protection
    timing0.1~999.9(S,M,H)adjustable
    VoltageAC380V±10% 50±0.5Hz Three-phase five-wire system
    environmental temperature5℃~+30℃ ≤85%R.H
    annotation:
    1. Above data were measured at temperature (QT) 25 ℃ and no-load condition.
    2. Can be customized non-standard-type high-low-temperature testing machine according to use’s requirements

    Standard
    operative standard :ASTM-D1790,D1593,JIS-K6545

    Applicable Industry
    Applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; commodity inspection, arbitration and technical supervision departments

    Vertical Leather Testing Equipment Low Temperature D1593 AC380VVertical Leather Testing Equipment Low Temperature D1593 AC380V


    Vertical low-temperature testing machine HZ-3011B....
