Xenon Arc Lamp Aging Test Chamber ISO 4892-1 Solar Simulator 290nm-800nm HZ-2011

    Buy cheap Xenon Arc Lamp Aging Test Chamber ISO 4892-1 Solar Simulator 290nm-800nm HZ-2011 from wholesalers

    Buy cheap Xenon Arc Lamp Aging Test Chamber ISO 4892-1 Solar Simulator 290nm-800nm HZ-2011 from wholesalers
    • Buy cheap Xenon Arc Lamp Aging Test Chamber ISO 4892-1 Solar Simulator 290nm-800nm HZ-2011 from wholesalers
    • Buy cheap Xenon Arc Lamp Aging Test Chamber ISO 4892-1 Solar Simulator 290nm-800nm HZ-2011 from wholesalers
    • Buy cheap Xenon Arc Lamp Aging Test Chamber ISO 4892-1 Solar Simulator 290nm-800nm HZ-2011 from wholesalers

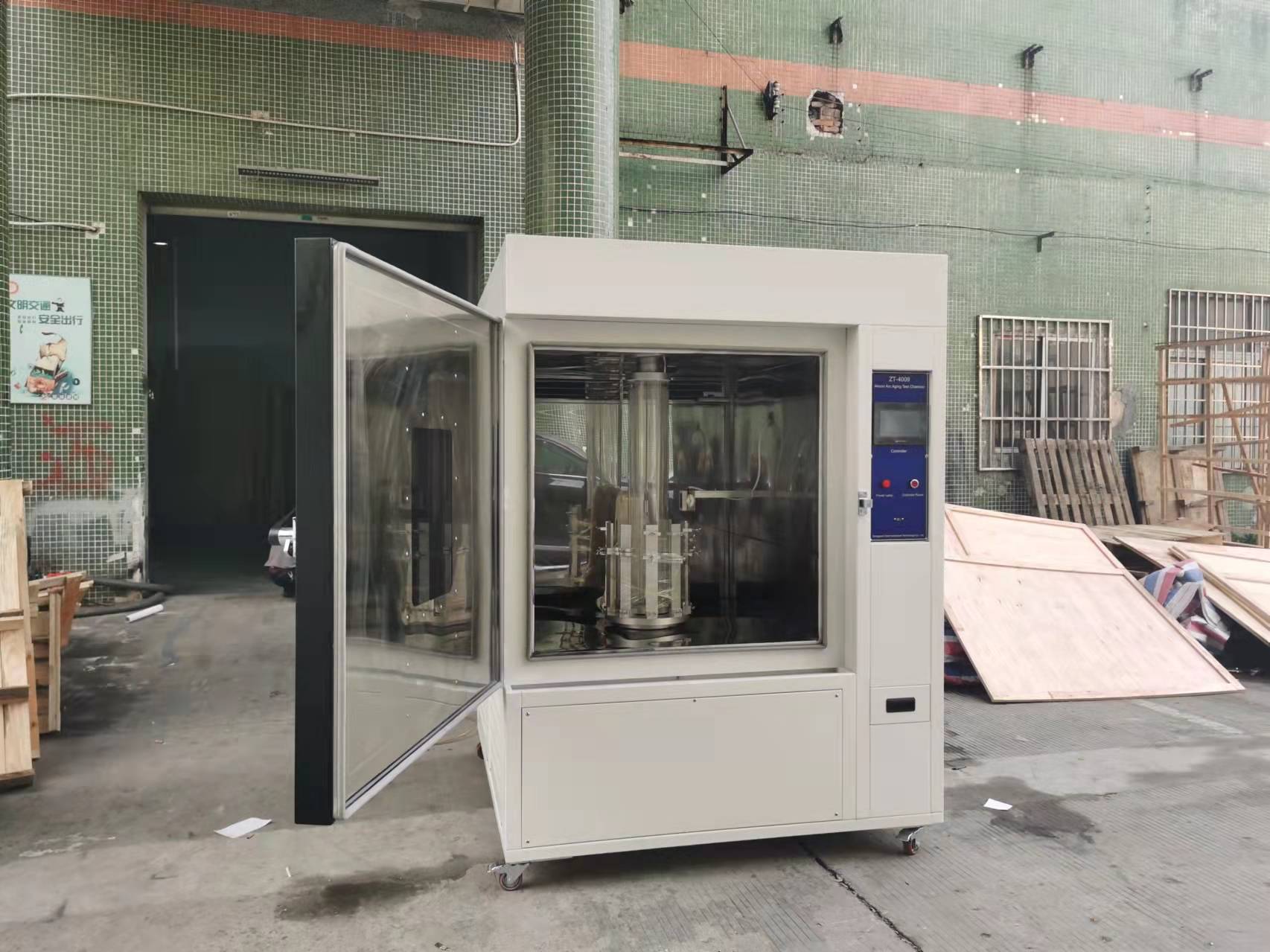

    Xenon Arc Lamp Aging Test Chamber ISO 4892-1 Solar Simulator 290nm-800nm HZ-2011

    Ask Lasest Price
    Brand Name : lixian
    Model Number : HZ-2011
    Certification : CE
    Price : negotiate
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : negotiate
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Xenon Arc Lamp Aging Test Chamber ISO 4892-1 Solar Simulator 290nm-800nm HZ-2011

    Xenon Test Chamber For Electronic Component Meeting Standard Astm G 151 High Quality Temprature Range RT+10~80 Celsius

    Xenon Test Chamber is a comprehensive climate testing machine, in addition to climatic aging test, the light fastness of materials can be carried out to test, polymer materials exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidity to test the materials;


    it can be used for choosing new materials, improving existing materials, or assessment of change in material composition; It is divided into air-cooled 2.5kw and water-cooled 6.5kw with water-cooled machine.


    This section is mainly to list some of the test standards for the test of various industries reference. Universal Standard IEC 68-2-9, Basic Environmental Testing Procedures ISO 4892-1, Plastics-Methods of exposure to laboratory light sources ASTM G151,General Guidelines for Exposure of Nonmetallic Materials ASTM G155, Xenon-Arc Test Apparatus for Exposure of Nonmetallic Materials


    Xenon Test Chamber Specification

    Model Number

    HZ-2011

    Sensor

    Platinum resistance; Pt100Ω/mv

    Power

    Electronic

    Certificatiom

    CE

    Humidity range

    65%~98% RH

    Power

    380v 3 phase

    Temperature range

    RT+10~80 celsius

    Xenon lamp climatic chamber

    vertical

    Testing room D*W*H

    500*600*500mm

    Spectral wavelength

    290nm~800nm(550w/m2)

    Light source

    Full spectrum xenon lamp (air-cooled)


    Imported xenon lamp , reliable quality Xenon Test Chamber

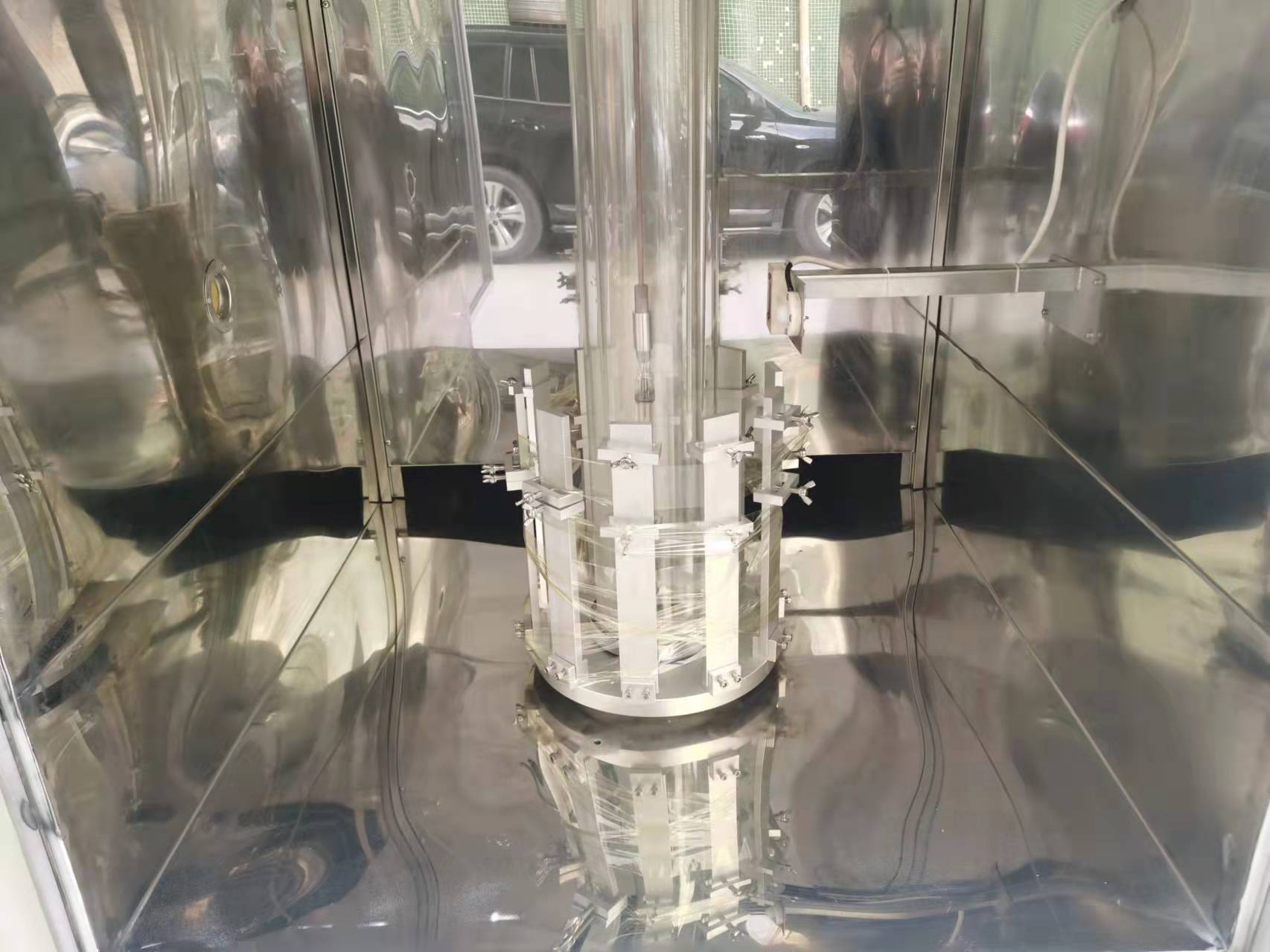

    Lixian Brand Xenon lamp aging test chamber, adopts planetary design, the lamp tube is perpendicular to the horizontal plane, located in the center of the test chamber, the style frame rotates around the lamp tube during the test, just like the regular operation of the solar system. The test area will be increased by at least 30%, and the test uniformity will be increased by at least 50%,more conducive to scientific repeatability of test data.


    Unique structure Xenon Test Chamber, national patent certificate

    Lixian Brand Xenon lamp aging test chamber, adopts planetary design, the lamp tube is perpendicular to the horizontal plane, located in the center of the test chamber, the style frame rotates around the lamp tube during the test, just like the regular operation of the solar system. The test area will be increased by at least 30%, and the test uniformity will be increased by at least 50%,more conducive to scientific repeatability of test data.


    Quality Xenon Arc Lamp Aging Test Chamber ISO 4892-1 Solar Simulator 290nm-800nm HZ-2011 for sale
