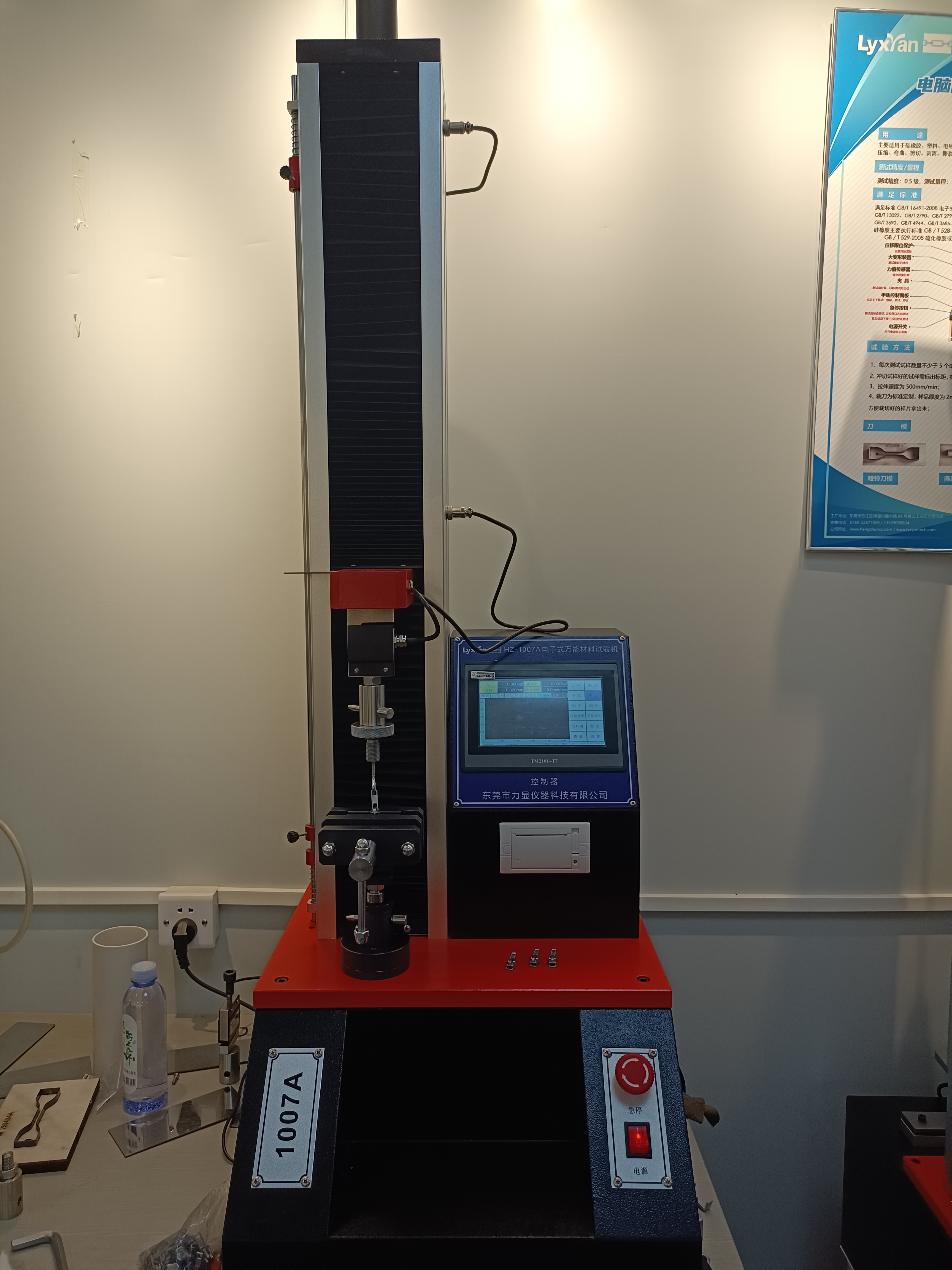

    ASTM D2061 Standard Universal Testing Machine 2KN Tensile Strength Measuring Machine UTM Desktop

    Universal Testing Machine 2KN Tensile Strength Measuring Machine ASTM D2061 Standard High Accuracy UTM Desktop HZ-1007A

    Tensile Strength Tester Machine is a simple type machine, simple structure, convenient operation, Tensile Test Machine can be tested on the operated table, Using the electronic control systems, load sensor is rising and falling to test the tension or compression through the motor rotation, transmission machinery and T-screws.
    Tensile Test Machine Equipment summary:
    Tensile Strength Tester Machine HZ-1007A is a simple type machine, simple structure, convenient operation, It can be tested on the operated table, Using the electronic control systems, load sensor is rising and falling to test the tension or compression through the motor rotation, transmission machinery and T-screws. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 2KN.
    Tensile Test Machine Main feature:
    1. Excellent design. my company has focused on product appearance over the years, company has developed many products that is similar with the foreign products, the surface of product is made of aluminum and process by electrostatic spray.
    2. Digital force displayed by LCD, discernible tension or pressure, LCD display clearly.
    3. Three kinds of units: N, Kg, Lb, Ton option or automatically exchange;
    4. LCD with backlight can be used in low-light environments.
    Tensile Test Machine Corresponding standard:
    GB/T 16491, GB/T 1040, GB/T 8808, ASTM D3759, ASTM D3330, ASTM D882, JIS K 6854, ASTM E4, ASTM D828, ASTM D1938, ASTM F88, ASTM F904, ISO 37, JIS P8113.
    Tensile Test Machine Technical parameters:
    Model
    Maximum load
    2kn
    Capacity choice
    2000kg or less than can be self-selected
    Unit
    KG,N,LB, TON can be exchanged.
    Measurement system
    Load cell + HZ-2000
    Accuracy load of measurement
    the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%)
    Resolution
    1 / 50000
    Maximum test stoke
    About 500mm (excluding gripper, can be customized)
    Test speed
    50-300mm/min with stepless speed and 5 fixed-speed (can be customized)
    Data sampling frequency
    200times/sec
    Display
    HZ-2000 dark blue LCD display, membrane touch keys, with the following functions.
    Machine size
    45x55x140cm (length*width*height)
    Weight
    75KG
    Ratio of Breakpoint
    from 0 ~ 99%, which the user can set according to different materials to stop the machine,
    realizing stop machine at any position.
    Safety
    The system would shut down if overload or over-trip.

    ①. Single test, 10-point statistics manually and automatically calculate its average and break values;
    ②. Multi-unit automatically exchange such as kgf, Lbf, N, ton
    ③. Function of free to take point;
    ④. With multi-calibration function;
    ⑤. Auto printing function;
    ⑥. Using 24-bit AD acquisition, resolution 1 / 200000;
    ⑦. Decimal digits 0 to 4 arbitrary choice;
    ⑧. Starting up using password protection feature, which can effectively prevent the non-operators to use.
    ⑨. Ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine.
    ⑩. Overload protection function can be set, effectively preventing machine from overload;
