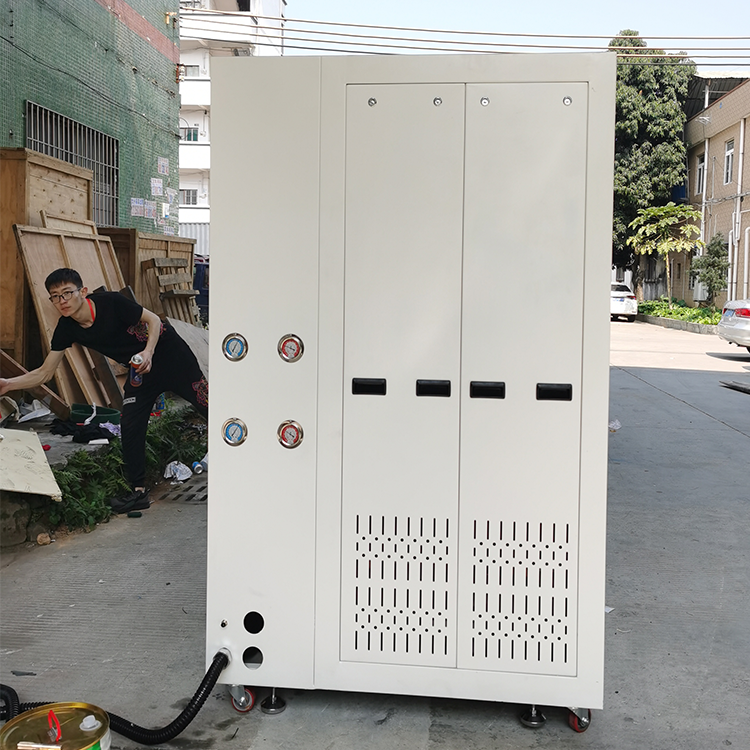

    100L Constant Temperature And Humidity Chamber Multiscene Fireproof

    Ask Lasest Price
    Brand Name : lixian
    Model Number : HZ-2012A
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 7 days
    Price : negotiate
    Supply Ability : negotiate
    • Product Details
    • Company Profile

    100L Constant Temperature And Humidity Chamber Multiscene Fireproof

    Exhaust Heat Rate 12600 KJ/H (3000 Kcal/H) Temperature Impact Chamber


    Chamber summary:
    The thermal shock test chamber, also known as the high and low temperature impact test chamber, is known as the cold and thermal impact machine in Taiwan. It is used to test the degree of material structure or composite material that can be tolerated in a continuous environment.
    Specification:
    Model
    HZ-2012 Water-cooled
    System
    2-zone transition by vertical transfer of specimens
    Performance *1

    Test area
    Hot exposure range
    + 60℃ to + 205℃
    Cold exposure range
    −77℃ to 0℃
    Temp. fluctuation *2
    ± 1.0℃
    Hot chamber
    Pre-heat upper limit
    + 205℃
    Heat-up time *3
    Within 90 min from ambient temp.
    to + 200℃ (Setting: + 205℃)
    Cold chamber
    Pre-cool lower limit
    −77℃
    Pull-down time *3
    Within 90 min from ambient temp. to −77℃ (Setting: −77℃)

    Temp. recovery performance (2-zone)

    Recovery conditions
    ・Hot exposure: +150°C (setting: +155°C 30 min)
    ・Cold exposure: − 65°C (setting: − 68°C 30 min)
    ・Sensor position: downstream
    ・Specimen: Plastic molded ICs, 10kg
    Temp. recovery time
    Specimen temp. within 15 min
    Transfer time between hot & cold chambers
    Within 10 seconds

    Ambient recovery

    Recovery conditions
    ・Hot exposure: +150℃ to max. + 55℃
    ・Ambient temp.: + 23℃
    ・Specimen: Plastic molded ICs, 10 kg
    Ambient temp. recovery time
    Within 90 min
    Inside dimensions
    W710×H345×D410 mm
    Test area capacity
    100 L
    Load capacity of test area *4
    30 kg
    Outside dimensions *5
    W1100×H1885×D1965 mm
    Weight
    Approx. 1100 kg
    Utility requirements
    Ambient temp. range
    + 5℃ to + 40℃
    Power supply
    (Voltage fluctuation: rating ± 10%)
    200V AC
    3φ 3W 50/60Hz
    208V AC
    3φ 3W 60Hz *6
    220V AC
    3φ 3W 60Hz
    380V AC
    3φ 4W 50Hz
    400/415V
    AC
    3φ 4W
    50Hz *7
    Piping connection size
    Carbon steel pipe, ID 32 mm
    Cooling water temp. range
    + 5℃ to + 38℃
    Main function:
    Used in electrical and electronic components, automation components, communication components, auto parts, metals, chemical materials, plastics, etc., defense industry, aerospace, military industry, BGA, PCB base board, electronic chip IC, semiconductor ceramics and polymer materials.
    The difference between two boxes and three boxes:
    The two slots are composed of a cold box and a hot box, the box does not move, and the sample is tested in the manner that the hanging bar is switched between the cold box and the hot box. The three tanks are composed of a cold box, a hot box and a test box, and are tested by means of air flow conversion of the object to be tested and the cold box and the hot box.
    Corresponding standard :
    1,GB/T2423.1-1989
    2,GB/T2423.2-1989
    3,GB/T2423.22-1989
    4,GJB150.5-86
    5,GJB360.7-87
    Application industry:
    Applicable to aviation, military, ship, electrician, electronics, instrumentation; medical equipment; civil nuclear energy; colleges and universities; research institutes; commodity inspection and arbitration, technical supervision departments; building materials ceramics; petrochemical products, complete machines and parts High and low temperature impact test.
