Brand Name : | Lixian |
Model Number : | HZ-1349 |
Certification : | CE, ISO |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 50 sets per month |
Delivery Time : | 7 work days |

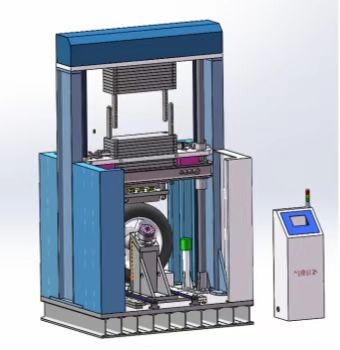

Automotive Testing Equipment Wheel Impact Testing Machine ISO7141-2005
Automotive Testing Equipment Technical Parameters
Model | HZ-1349 |
Working power | 380V AC,50Hz,3P+N+PE |
System power | 5kw |
Air source pressure | 1.0MPa |
Weight adjustment range: 350kg~1200kg, adjustment grade:2. 5kg | |
Main hammer | 350kg |
Secondary hammer | 50kg-13 blocks |
Cylindrical secondary hammer | 2.5Kg-2 block, 5Kg-2 block, 10Kg-2 block |
Weight accuracy | ±2% |
Weight drop height | ≥500mm |
Hammer impact surface area: | |
13° impact | ≥L375mm×W125mm |
30° impact | ≥L375mm×W125mm |
90° impact | ≥L375mm×W125mm |
Tilt of the wheel bracket: | 13 ° ± 1 °, 30 ° ± 1 °,90 ° ± 1 ° |
Wheel bracket stiffness: | When the vertical force of 1000kg acts on the center of the bracket, the vertical deformation of the center of the working plate 7.5mm ± 10% |
Applicable test machine wheel diameter range | 13〞~24〞 |
Applicable test machine wheel width range | 4〞~10〞 |
Cushion rubber mat: | cushion rubber mat: 4 pcs, 51 × 27mm, hardness: Shore 50 |
Suitable environment | |
Temperature | 10 ° C ~ 45 ° C |
Humidity | <85% |
Altitude | <1000m |
No-load noise control | ≤75dB |
Dimensions of the device | approx. L1900mm × W1500mm × H2800mm |
Equipment weight | about 7.5t |
Automotive Testing Equipment Summary
![]() |
