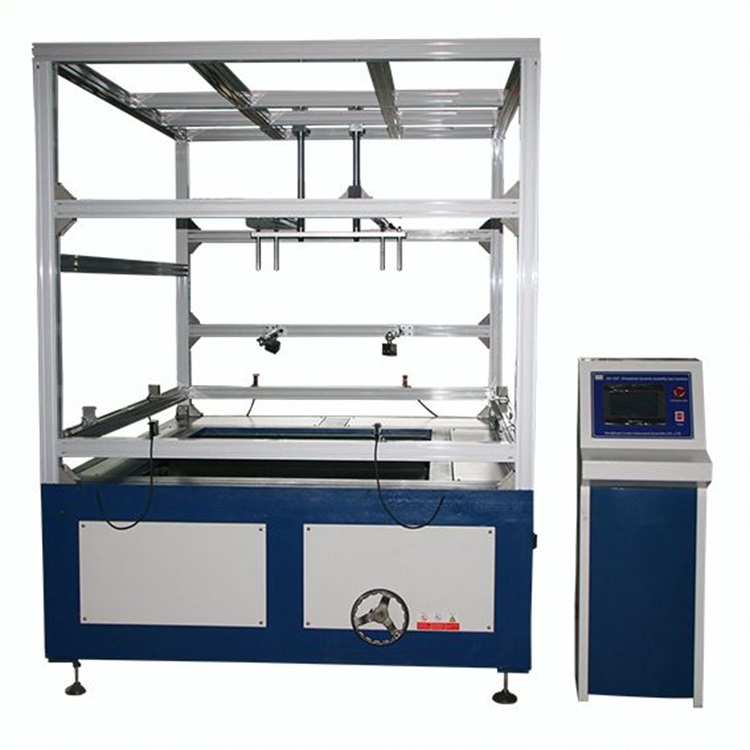

Stroller Tester Wheelchair Dynamic Durability Test Machine HZ-1227 With ISO7176

Equipment Summary:
Wheelchair Dynamic Durability Test Machine HZ-1227 executable electric wheelchairs and manual wheelchairs road test.

Technical Parameter:

Roller Diameter	ø250 mm x 2 group
Roller Length	1000 mm
Test Speed	1.0±0.1 M/s
Test rotational speed:	roller can be in any 10 ring turns at an average speed of 1.0 + / - 0.1 M/s
Support structure	the extruded aluminum frame combination
Test Model	(Conform to the ISO7176-11 standard)
Weight	25㎏, 50㎏, 75㎏, 100㎏ Back, feet, seats
Sprinkler system	has the sprinkler system simulation wet road test. Flow 4 ml/s
Impact block	with ISO7176
specification: length	40mm

◆ Each cylinder to 30 ° position drill a impact block mounting hole position
◆ The drum surface mining embossing
◆ Roller adopt chain transmission mode
◆ Roller adopt antirust surface treatment
◆ The distance between roller center is about 395 _1100 ㎜ adjustable (or designated)
◆ The wheel spacing adjustment is adopted handwheel quick adjustment method
◆ Electronic six digits counter in a group
◆ Structure body damage sensing stop with two groups
◆ Motor speed table with a group
◆ Electronic timer with a group
◆ Electromagnetic clutch with a group
◆ Test model: : (with ISO7176-11 standard)
◆ Safety device: 1.Emergency stops 2.Over current then automatic stop device 3.
The test installation position deviation then detect stop automatically
◆ Reluctance brake a group can simulate slope control
◆ Control range:0 °ø15 °
