Rustproof DC 100V Anti Static Tester , Multifunctional Anti Static Footwear Tester

    Buy cheap Rustproof DC 100V Anti Static Tester , Multifunctional Anti Static Footwear Tester from wholesalers

    Buy cheap Rustproof DC 100V Anti Static Tester , Multifunctional Anti Static Footwear Tester from wholesalers
    • Buy cheap Rustproof DC 100V Anti Static Tester , Multifunctional Anti Static Footwear Tester from wholesalers

    Rustproof DC 100V Anti Static Tester , Multifunctional Anti Static Footwear Tester

    Ask Lasest Price
    Brand Name : lixian
    Model Number : HZ-8103
    Certification : CE
    Price : negotiate
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : negotiate
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Rustproof DC 100V Anti Static Tester , Multifunctional Anti Static Footwear Tester

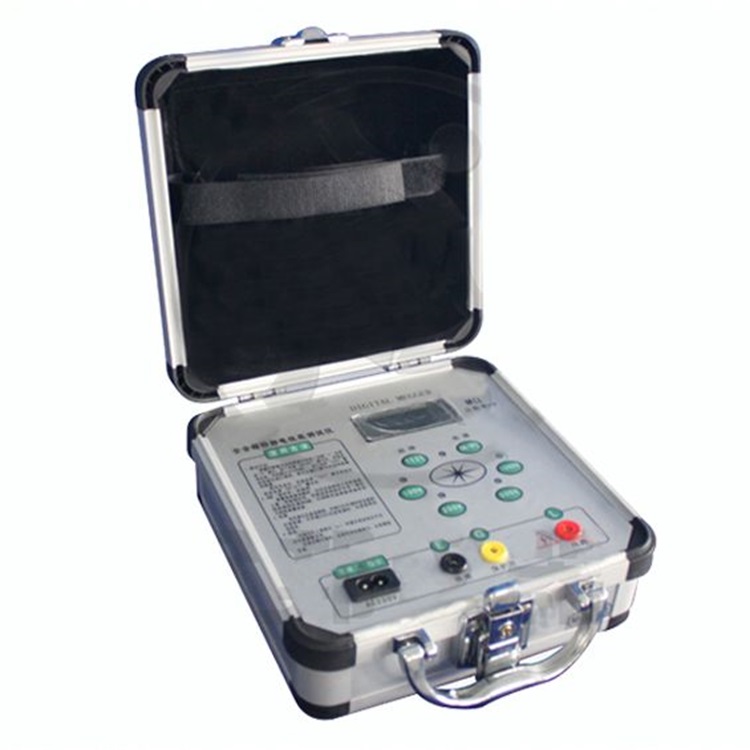

    Helmet Test Equipment Helmets Anti-Static Tester HZ-8103 GB/T 2812-2006


    Equipment Description:
    Helmets specifically detect anti-static properties. The safety helmet anti-static tester is suitable for the determination of anti-static properties of safety helmets, engineering plastics, and helmets with anti-static requirements. It can be used by rubber industry, plastic industry, inspection department and scientific research unit

    Corresponding standard:
    GB/T 2812-2006 GB/T 2811-2007
    Technical parameter:
    ModelHZ-8103
    Corresponding standardGB/T 2812-2006 GB/T 2811-2007
    High resistance meter indication error±1%
    Voltage100V DC
    Instrument Features
    1. It has excellent advantages such as portability and use, wide range, accurate reading and strong shock resistance.
    2. Three and a half liquid crystal display, the maximum display 1999.
    3. Over limit prompt, when the upper limit is exceeded, the highest digit will display '1', and the other last three digits will not be displayed; when it is below the lower limit, an alarm will sound.
    4. The undervoltage symbol is displayed when the battery is undervoltage.
    5. Power is supplied by a built-in 6f22 type 9V laminated battery.
    testing method
    After the helmet is pretreated, stick two electrodes on the flat part of the helmet. The electrodes should be placed in parallel with a distance of 10mm±0.5mm. The electrodes and the helmet should be bonded with conductive glue. The resistance value of the conductive glue Should be <1KΩ; connect the measuring end of the high resistance meter to the electrode, read the resistance value displayed by the high resistance meter; then exchange the electrode to repeat the test once, and record the displayed value; The average of the two measurement readings is the actual measured surface resistance.
