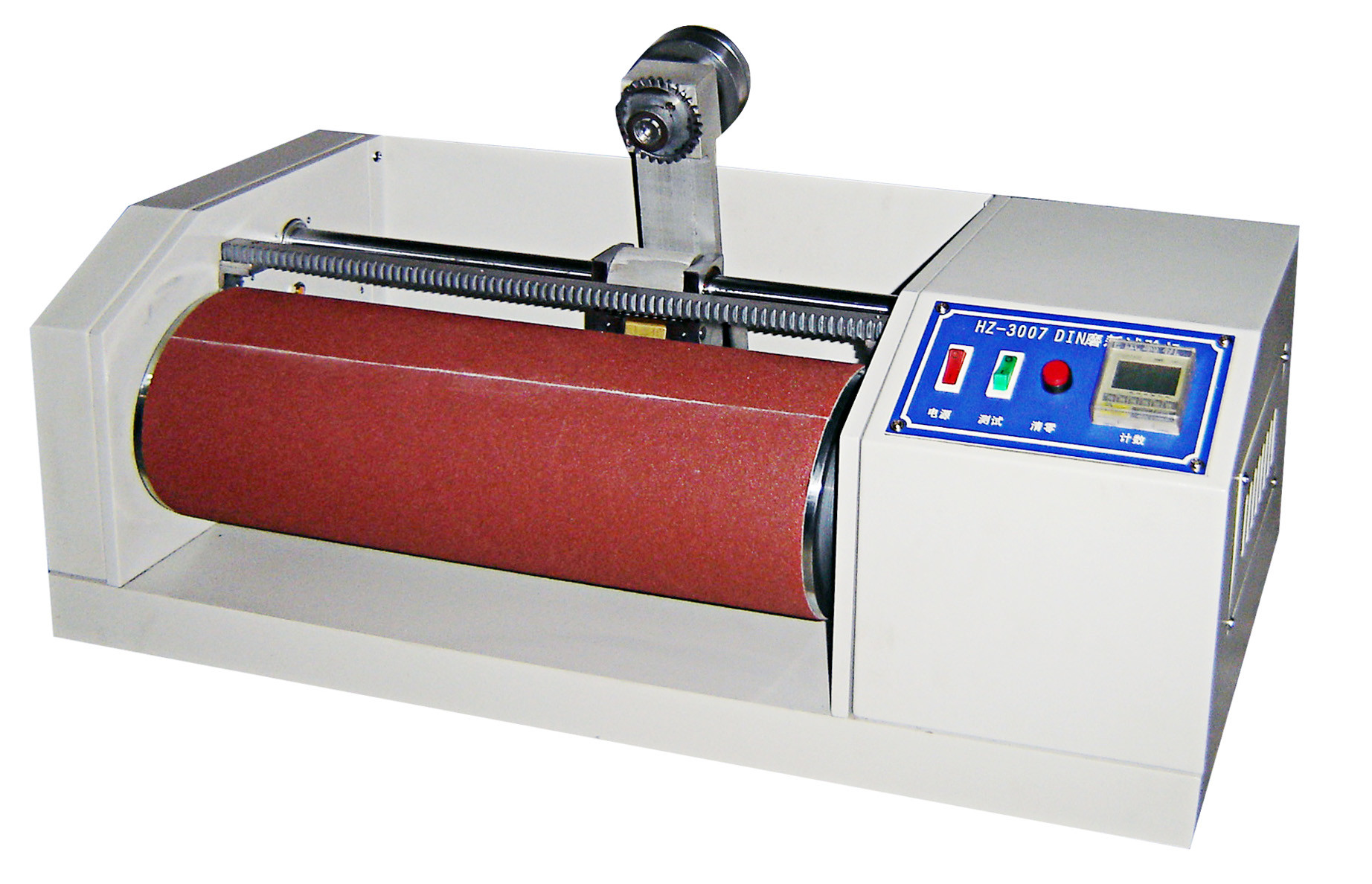

    DIN Abrasive Leather Testing Equipment 50HZ Abrasion Resistant

    Ask Lasest Price
    Brand Name : Lixian
    Model Number : HZ-3007
    Certification : CE, ISO
    Price : USD 800~3000 Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets per month
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    DIN Abrasive Leather Testing Equipment 50HZ Abrasion Resistant

    Leather Testing Equipment DIN Abrasive Tester DIN-53516 ISO-4649 GB/T9867-88


    Leather Testing Equipment Main functions
    This tester is a high efficiency, good reproducibility and easy to operate, applied to test the abrasive nature of material, as such elastic material, rubber, tires, convey belt, transmit belt, sole, synthetic leather, leather and others.
    Leather Testing Equipment Technical Parameters
    ModelHZ-3007
    StandardDIN-53516;ISO-4649;GB/T9867-88
    Specimen Sizedia 16mm, thickness at least 6mm
    Specimen Load10N± 0.2N
    Diameter of wear wheeldia 150mm
    Speed of wear wheel40 ±1RPM
    Emery cloth Specification60 #, seam is less than 2mm
    Testing Length40M (about 84 rotate)
    Horizontal displacement4.2mm / rotate
    Test-arm weight250 ± 5 (g).
    Testing Load2.5N, 7.5N.
    Diameter abrasive wheeldia 150 ± 450L (mm).
    emery cloth60 #, 425 ±473 ±1.5 (mm).
    Wheel Speed40 ± 1RPM.
    Shift screw6 teeth / inch.
    Limit rotation85 rotate.
    Set rotation84 rotate (about 40M).
    Return formReturn form: Electric automatic reset.
    Drive Power40W; 1 / 30.
    Power220V 50HZ.
    Machine Dimensions600 ±330 ±420 (mm).
    Machine Weight75kg.

    Leather Testing Equipment Overview


    The main function of DIN abrasive tester is to test the friction of surface by a particular piece of sandpaper, After friction for a certain time, and then assess the condition of material surface, weight, volume and thickness, from this standard to assess the abrasive nature of materials.
    DIN Abrasive Leather Testing Equipment 50HZ Abrasion ResistantDIN Abrasive Leather Testing Equipment 50HZ Abrasion Resistant
    Leather Testing Equipment Standard
    DIN-53516;ISO-4649;GB/T9867-88
    Leather Testing Equipment Applicable Industry
    Applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; commodity inspection, arbitration and technical supervision departments.
    DIN Abrasive Leather Testing Equipment 50HZ Abrasion Resistant

    DIN Abrasive Leather Testing Equipment 50HZ Abrasion Resistant


    FAQ
    Q1: What is your warranty ?
    A: 12 months product warranty, but lifetime for services. Free Non-consumable components will be provided if any performance failure occurs within 12 months, caused by non-human damage.

    Q2: How-to video provided ?
    A: Yes. If required, our engineers will record a specialized how-to video for you.

    Q3: Are your company a trading one or a factory?
    A: Yes, we are a manufactured factory & trade (integration).15 years focusing on test instruments field. Six years exporting experience, warmly welcome to visit our plant (factory), we also support OEM and ODM.

    Q4: After an order is placed, when to deliver?
    A: Generally about 15 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.

    Q5: What about the after-sales service and product’s quality?
    A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely.Each of the instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. Engineers would be to go abroad for training and repairing.

    Q6: What about the packing of equipment?
    A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
