    Servo Universal Bending Testing Machine UTM For Carbon Fiber Accurate 0.5 Grade 20 Kn Capacity Hz-1003A

    Ask Lasest Price
    Brand Name : lixian
    Model Number : HZ-1003A
    Certification : CE
    Price : negotiate
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500hundred sets per month
    Delivery Time : 7days
    • Product Details
    • Company Profile

    Servo Universal Bending Testing Machine UTM For Carbon Fiber Accurate 0.5 Grade 20 Kn Capacity Hz-1003A

    Servo Universal Bending Testing Machine UTM For Carbon Fiber Accurate 0.5 Grade 20 Kn Capacity Hz-1003A

    Computer Type Universal Testing Machine HZ-1003A.p...

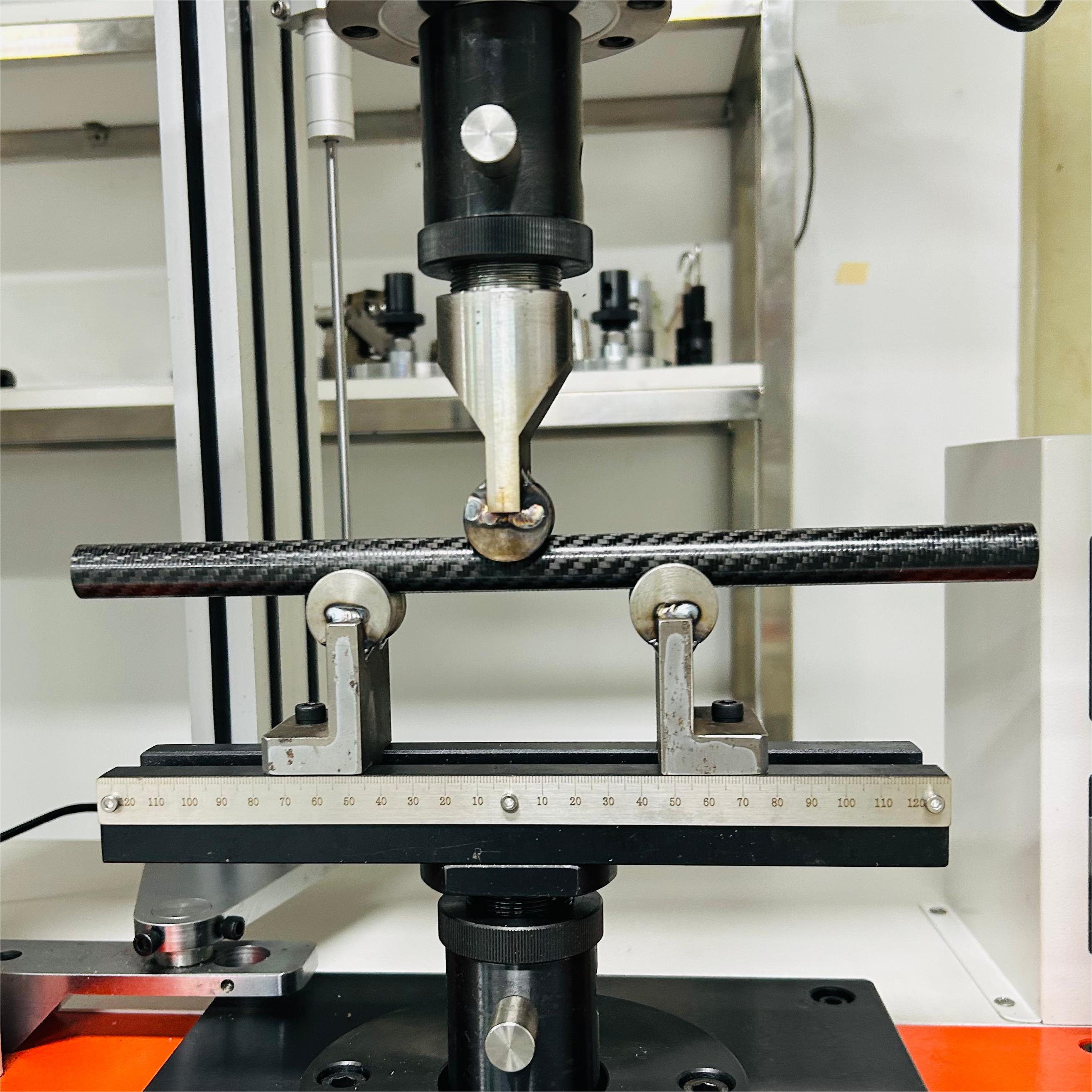

    Universal Testing Machine Carbon Fiber Bending strength test machine, also known as a tensile testing machine or bending tester, is a specialized equipment used to determine the Strength or resistance of materials. It measures the ability of a material to withstand shear forces or deformation before failure occurs.


    SPECIFICATIONS

    Max load20KN
    ExtensometerComply with Extensometer (if need, please inform supplier before order)
    Accurate Grade0.5 grade
    Effective Measuring RangeForce from 0.2% to 100% / from 0.4% to 100%
    Load SensorBasic configuration sensor max load: one
    Effective Test Width420mm (can be increased the tensile space according to customers requirement )
    Effective Tensile Stoke800mm (can be increased the tensile space according to customers requirement )
    Testing SpeedFrom 0.01 to 500mm/min, adjustable
    Displacement AccuracyTolerance:±0.5% / tolerance: ±0.2%
    SafetyElectronic-limit protection
    Overload ProtectionOverload 10%, automatic protection
    Machine Dimension80x55x220cm (L*W*H)
    MotorTaiwan “Delta” servo motor and drive
    Power Supply220V , 50HZ or according to the requirement

    During a shear strength test, the specimen is placed between the shear fixtures, and a shear load is applied. The load frame moves the fixtures relative to each other, inducing shear deformation in the specimen. The load cell measures the applied shear load, while the displacement measurement system records the deformation or displacement of the specimen.

    The collected data is used to calculate shear stress (shear load divided by the cross-sectional area) and shear strain (shear displacement divided by the original height or length) for evaluating the shear strength properties of the material.

    Shear strength testing is performed on various materials such as metals, plastics, composites, soils, and adhesives. The specific test method and standards used for shear strength testing depend on the material and application. Organizations such as ASTM International or ISO provide standards that outline specific procedures and guidelines for conducting shear strength tests on different materials.


    UTM Fixture

    Tensile machine grips is an indispensable part of the universal test machine. The company provides tensile machine grips custom services to customers around the world and export UTM for 24 year. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference.
