Torsion Testing
Machine
Equipment structure and control system description

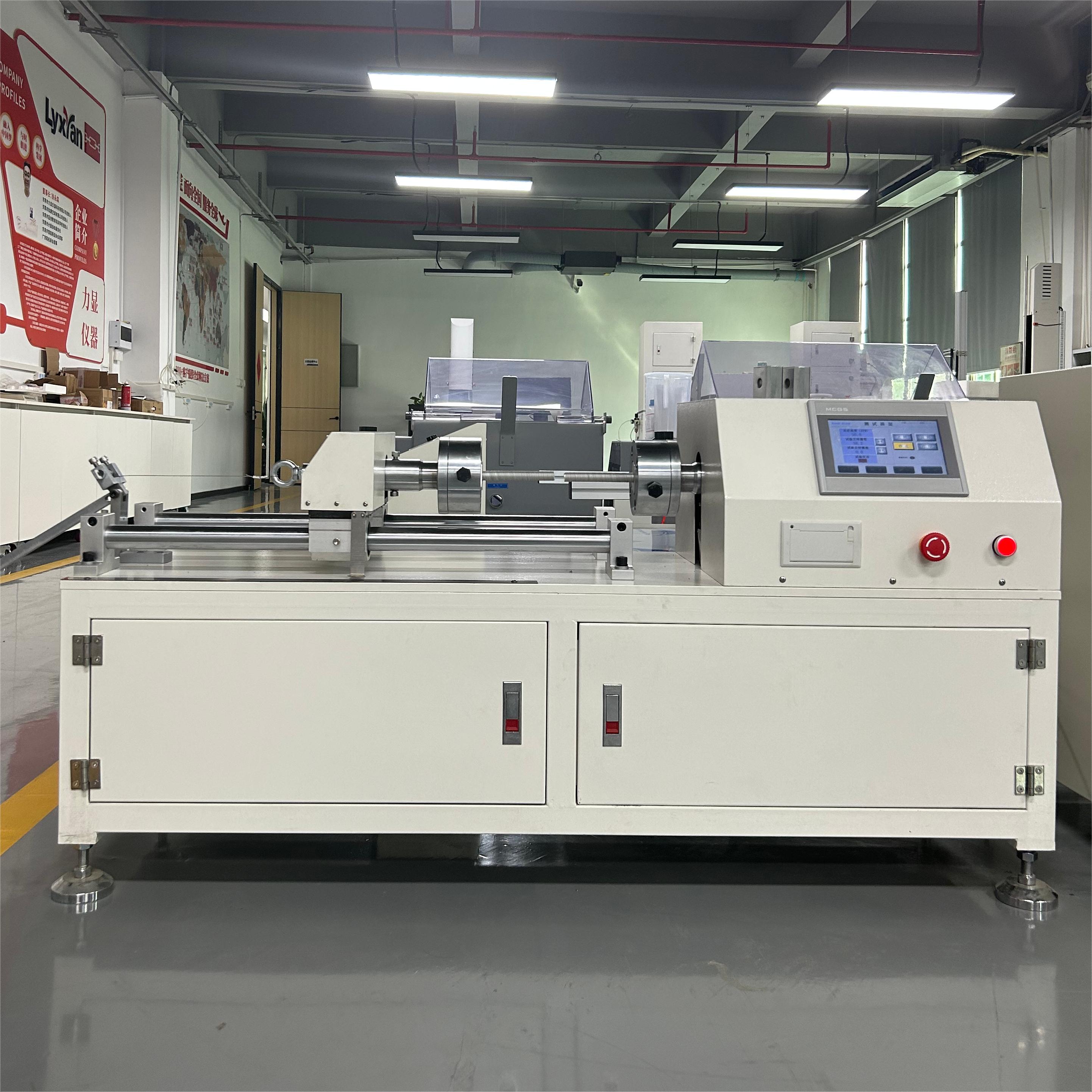

[Main machine] adopts a horizontal structure, and the main
structure adopts an overall thickened steel plate structure to

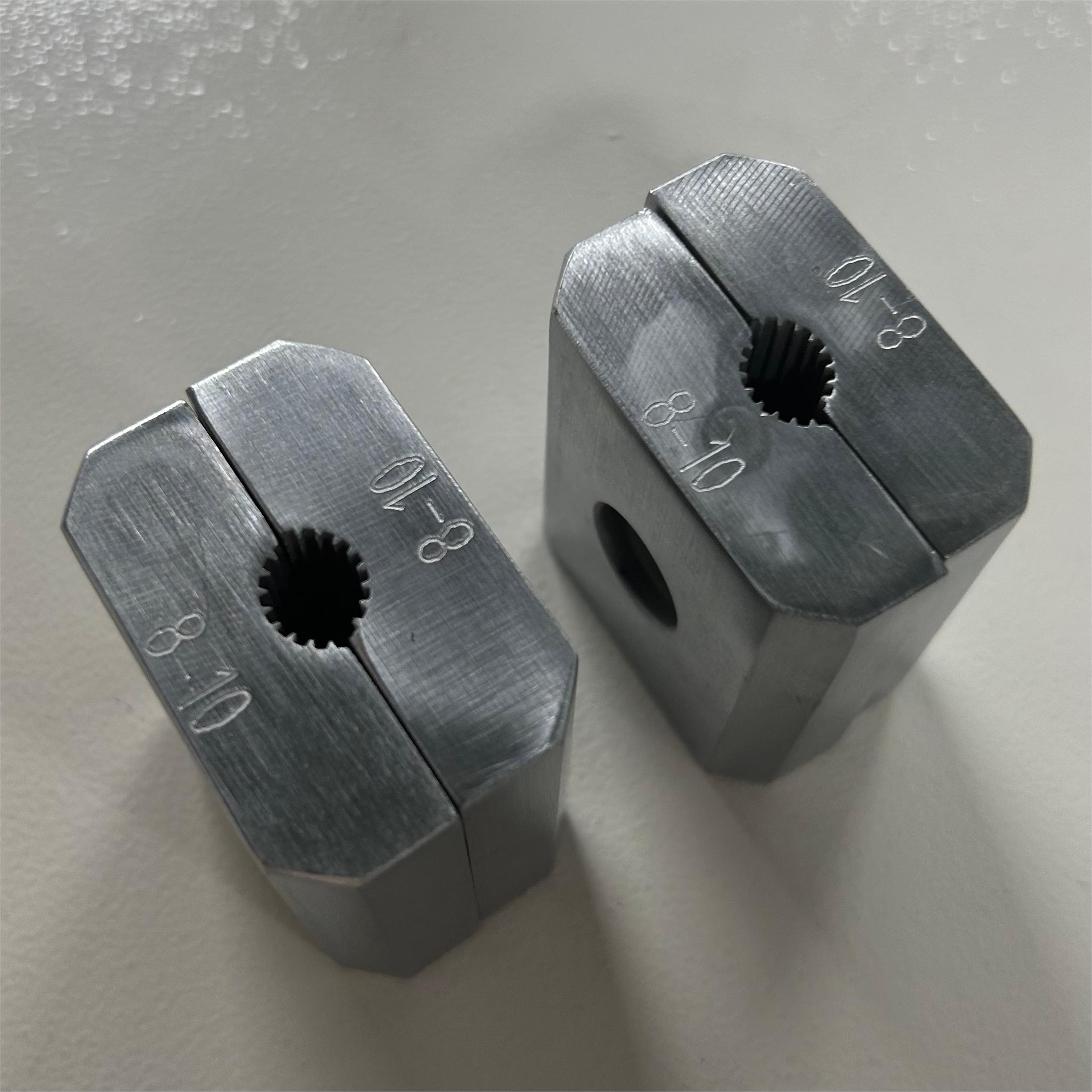

ensure the rigidity of the whole machine; the clamps adopt
high-quality carbon steel 45 quenching (HR55~65) method, which has
a long service life; the installation and disassembly of the
specimen are convenient and Fast.
[Drive system] Fully digital ZCTestmart control system drive;
adjustable speed, uniform and stable loading.
[Transmission system] Adopts precision reducer transmission to ensure uniformity, stability and transmission accuracy.
[Transmission system] Adopts precision reducer transmission to ensure uniformity, stability and transmission accuracy.
[Measurement display system] This machine uses a large-screen
liquid crystal display system to simultaneously display the torque
T, torsion angle θ, and test speed of the sample.
[Safety protection system] Overload protection, over-current protection, etc.
[Safety protection system] Overload protection, over-current protection, etc.
Torsion Testing Machine Equipment Working environment requirements
1 At room temperature within the range of 100C to 350°C, the relative humidity is ≤80%;
2 On a stable foundation or workbench;
3 In an environment with no vibration and no corrosive media around;
4 The fluctuation range of the power supply voltage should not exceed ±10% of the rated voltage.
