Computer Rubber Mooney Viscometer RT200C Rotor Speed 2 Rotation/Min
ISO 6502: 1991
Rubber
Mooney Viscometer HZ-7001B New.pdf

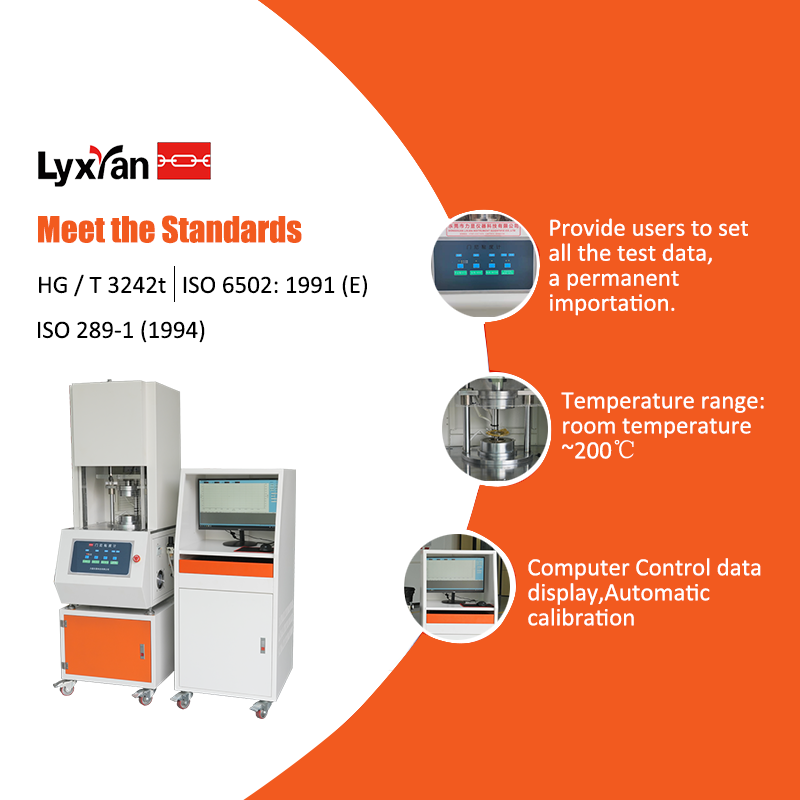

Mooney Viscometer Equipment Summary
HZ-7001B Mooney Viscometer viscosity for rubber vulcanization index determination. Sample in a certain
temperature and pressure, the rotor to a certain degree of rotation
torque on the sample to a certain degree of shear stress, measure
out the rubber anti-shear torque. Is reclaimed rubber, rubber, wire
and cable industry indispensable instrument.
Mooney Viscometer Meet the Standards
1)HG / T 3242 rubber Mooney viscometer technical conditions
Rubber - Determination of vulcanizability using a rotorless
vulcanizing apparatus
2)ISO 6502: 1991 (E) Rubber - Determination of vulcanizability
using a rotorless vulcanizer
3)ISO 289-1 (1994) Unvulcanized rubber - Determination with a shear
disc viscometer
Applicable Industry
Widely used in the measurement of quality inspection; rubber
research; automotive manufacturing; wire and cable; medical
equipment; civil aviation; institutions of higher learning;
research laboratories; technical supervision departments;
petrochemical; tire production; other industries.
Mooney Viscometer Technical Parameter
| Model | HZ-7001B |
| Control temperature range | room temperature~200℃ |
| Temperature display resolution | 0.01℃(0.1 ℃ common type of imported temperature controller) |
| Temperature control accuracy | ± 0.3℃ |
| Calibration accuracy | Mooney value ± 0.5 |
| Rotor speed | 2 rotation/ min ± 0.02rotation / min |
| Torque range | Mooney value 0～200 |
| Torque resolution | Mooney value 0.1 |
| Print content | Date, time, temperature, Mooney scorch curve |
| Power | 50HZ, 220V |
Mooney Viscometer Features
● Test Standard Modular Function: Provides the user to set the
required test settings, covering GB, ASTM, DIN, JIS,BS ... and
other test standards.
● test information: provide users to set all the test data, a
permanent importation.
● Graph Curve Scale Auto Scale, allows the graph to be displayed at
the best scale. And real-time graphics in the test dynamic Switch.
● Temperature control circuit by the monitoring module, platinum
resistance, heater composition, can automatically track changes in
power grid and ambient temperature, PID parameters automatically
amend,to achieve rapid, precise temperature control purposes.
● Computer control and interface board for data collection,
preservation, processing and printing of test results and curves.
● Software platform can be Window 98 / me / NT / XP and other
versions of the visual graphics software window user interface to
make digital processing more accurate operation,more simple,
flexible and convenient.
