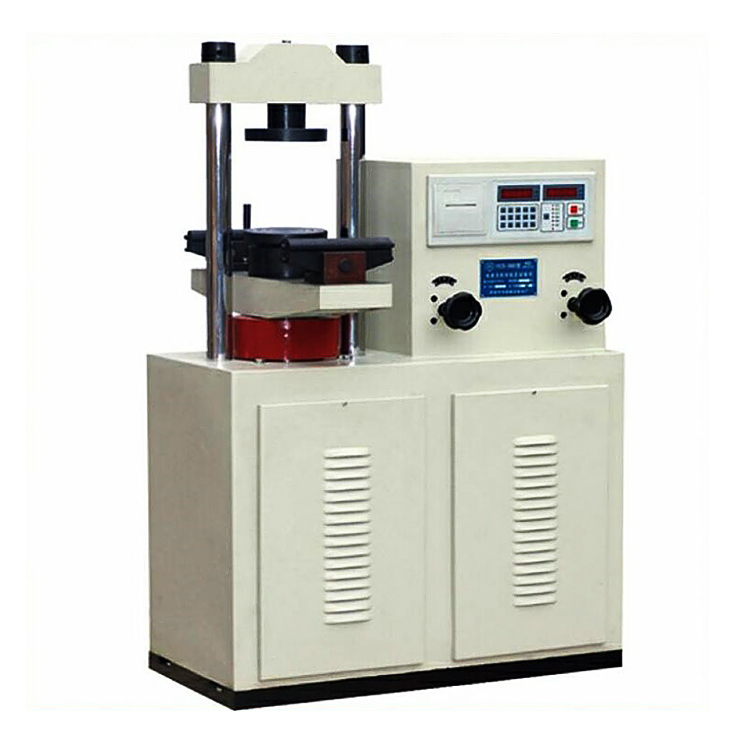

Compression Testing Equipment Two Column Type 100 KN Capacity For Hydraulic Concrete Building Materials

UTM Equipment summary:

The building materials compression testing machine is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test, can also be used to test the mechanical properties of other materials.

Hydraulic System:

The oil tank is sucked through the filter screen and be inhaled pump oil ,through the petroleum pipe line of oil pump transport to oil valve, When the hand wheel to send off the oil, due to the role of oil will push the piston, the oil from the return pipe to tank, when the hand wheel to open get the oil, then the working fluid into the fuel tank through the tubing, pressure tubing through and through oil return valve to tank.

Control system:

This building materials compression testing machine adopts hydraulic loading, electronic measuring,with a load of figures, the loading rate shows that the maximum load to maintain, as well as over load protection and power data retention and other functions.

Safety protection device:

When the test force more than 3% of the maximum test force, the overload protection, oil pump motor shut down. Fixture: Whole set fextures include: a set compression platen fixture

UTM Specification

Model Number	HZ-006
Test force measuring range	4%-100%FS
Max load	100kN
Test Force showed the relative error	≤indicating value±1%
Test Force Resolution	0.01kN
Hydraulic pump rated pressure	27MPa
Bearing compress plate size	155mm
Resist bending roll diameter	32mm
Piston diameter	130mm
Piston stroke	80mm
Motor Power	3 phase 0.75 kW
