    Up And Down Stroke Life Testing Machine Equipment For Monitor Stand 60-700 Mm Adjustable Height Distance Fixture Plate

    Ask Lasest Price
    Brand Name : Lixian
    Model Number : HZ-5067
    Certification : CE, ISO
    Price : USD 1000~6000/per set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100 sets per month
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    Up And Down Stroke Life Testing Machine Equipment For Monitor Stand 60-700 Mm Adjustable Height Distance Fixture Plate

    Up And Down Stroke Life Testing Machine Equipment For Monitor Stand 60-700 Mm Adjustable Height Distance Fixture Plate

    Up And Down Stroke Life Testing Machine Product Description

    The machine is mainly used for the fatigue test of the up and down movement of the monitor stand.

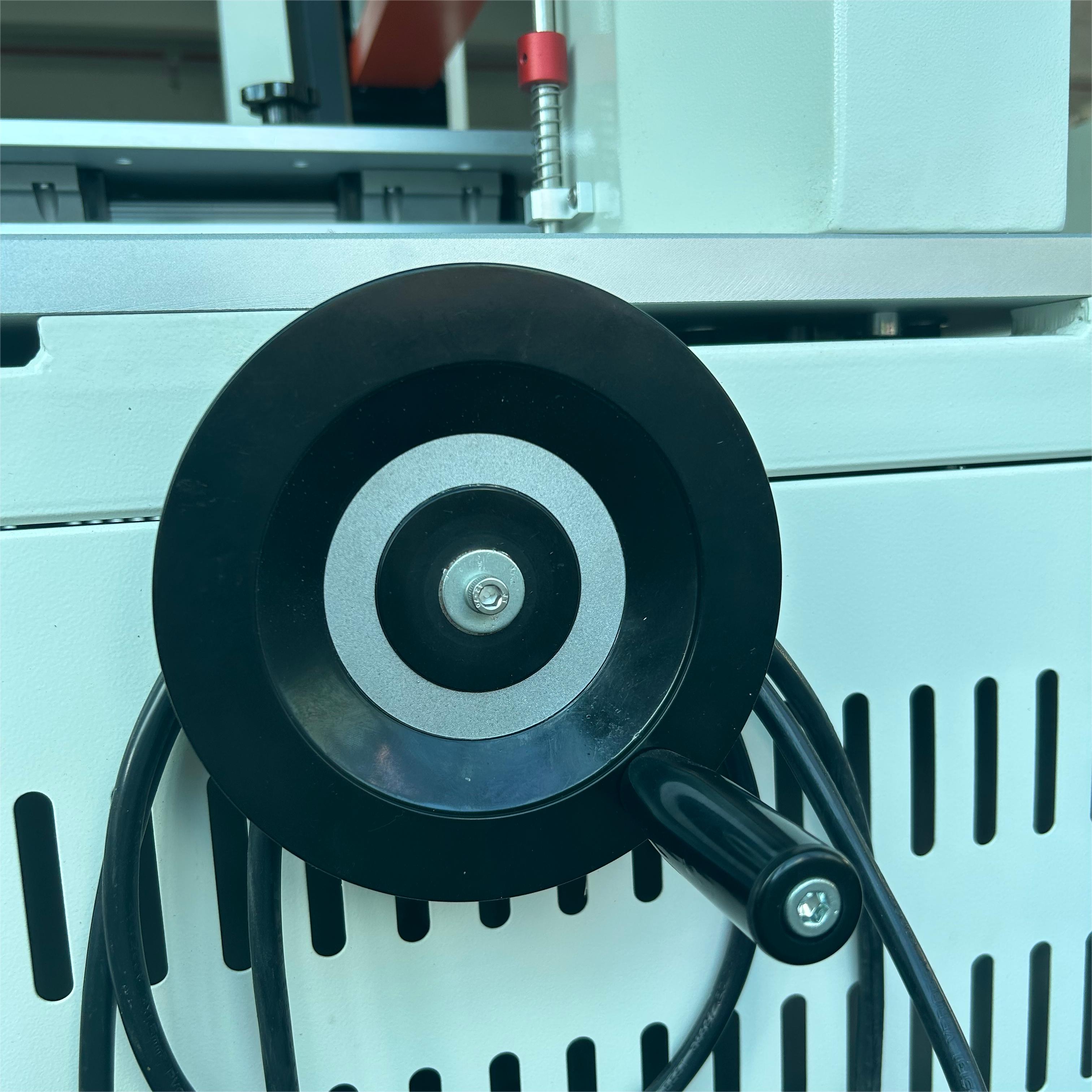

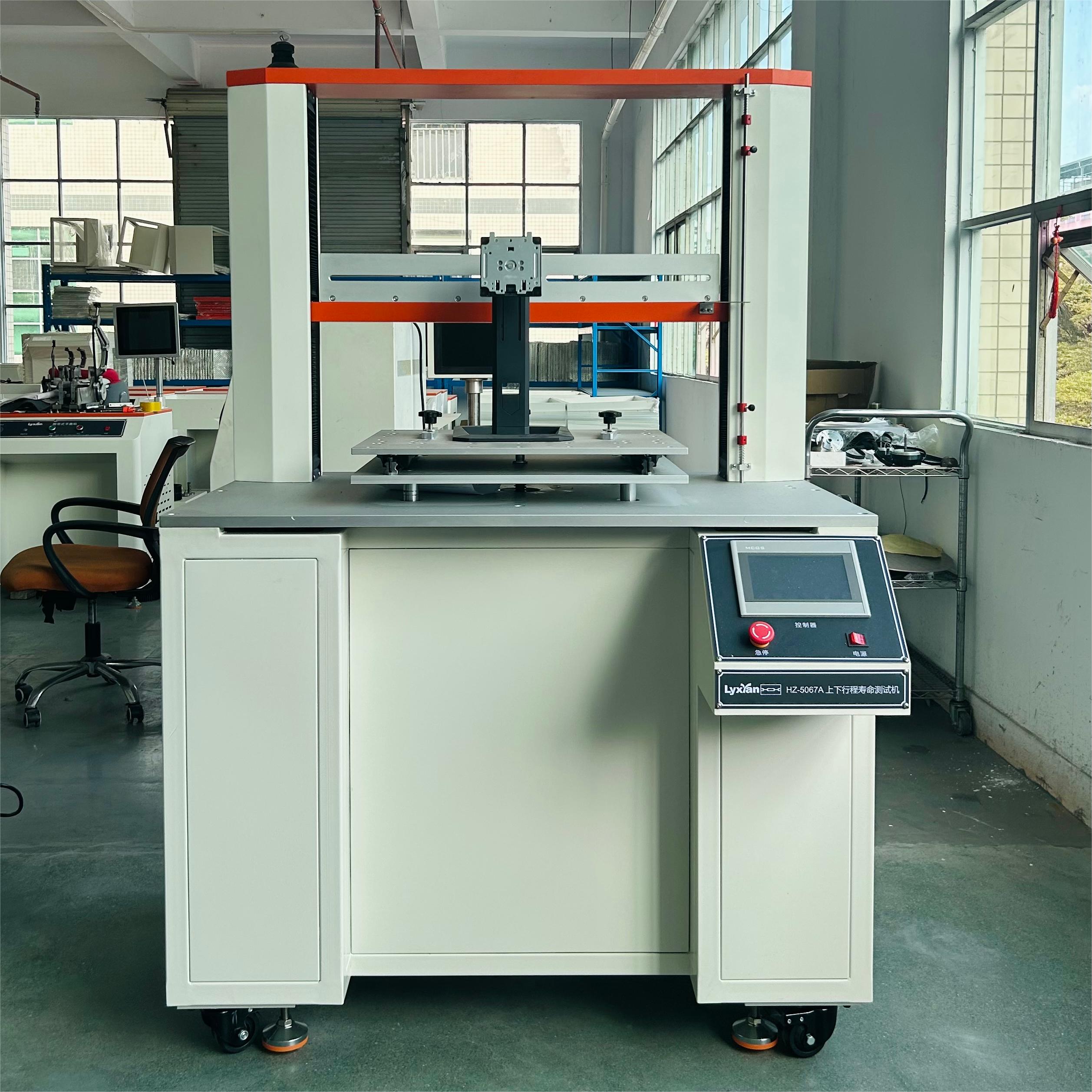

    The machine consists of a base frame, a lifting and adjusting workbench, a fixture plate for up and down movement, a guide rail, etc. The lifting and adjusting workbench, the fixture plate for up and down movement, the guide rail, etc. are all fixed on the base frame. The lifting and lowering of the lifting and adjusting workbench is adjusted by rotating the hand wheel through a screw mechanism. At the same time, the workbench is equipped with two linear slide rails, and the upper workbench can be adjusted forward and backward. The up and down movement of the fixture plate is realized by a servo motor through a double screw and a double guide rod. The touch screen control can set the number of tests and the height.
    Up And Down Stroke Life Testing Machine Specification
    Specification
    Model Number
    HZ-5067
    Product name
    Up And Down Stroke Life Testing Machine
    Machine size
    1310*900*1860 mm (approx.)
    Display mode
    PLC
    Testing space
    touch screen display
    Power supply voltage
    input according to the nameplate
    Front and rear adjustable distance
    80 mm
    Adjustable height distance fixture plate
    60-700 mm
    Applicable Industries
    Monitor Stand
    Rotation direction
    Up And Down
