Baby Cot Guardrail Compression & Pull Push Testing Machine Force Value Accuracy 1% Side Force Cylinder Force Range 0-300n

    Buy cheap Baby Cot Guardrail Compression & Pull Push Testing Machine Force Value Accuracy 1% Side Force Cylinder Force Range 0-300n from wholesalers

    Buy cheap Baby Cot Guardrail Compression & Pull Push Testing Machine Force Value Accuracy 1% Side Force Cylinder Force Range 0-300n from wholesalers
    • Buy cheap Baby Cot Guardrail Compression & Pull Push Testing Machine Force Value Accuracy 1% Side Force Cylinder Force Range 0-300n from wholesalers
    • Buy cheap Baby Cot Guardrail Compression & Pull Push Testing Machine Force Value Accuracy 1% Side Force Cylinder Force Range 0-300n from wholesalers
    • Buy cheap Baby Cot Guardrail Compression & Pull Push Testing Machine Force Value Accuracy 1% Side Force Cylinder Force Range 0-300n from wholesalers

    Baby Cot Guardrail Compression & Pull Push Testing Machine Force Value Accuracy 1% Side Force Cylinder Force Range 0-300n

    Ask Lasest Price
    Brand Name : Lixian
    Model Number : HZ-1230
    Certification : CE, ISO
    Price : USD 190~8000/per set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets per month
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    Baby Cot Guardrail Compression & Pull Push Testing Machine Force Value Accuracy 1% Side Force Cylinder Force Range 0-300n

    Baby Cot Guardrail Compression & Pull Push Testing Machine Force Value Accuracy 1% Side Force Cylinder Force Range 0-300n

    Baby Cot Guardrail Compression & Pull Push Testing Machine Equipment summary:

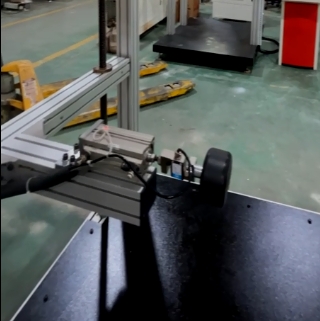

    Baby Cot Guardrail Compression & Pull Push Testing Structural principle: The machine consists of a workbench, an aluminum alloy frame, a lateral force device, a vertical force device, a vertical adjustment device and a top cross slide. The workbench lateral force device, vertical force device, vertical adjustment device and top cross slide are fixed on the aluminum alloy frame. During the test, the position of the cross slide is adjusted in two directions by the motor, the position of the lateral force device is adjusted, and the required force is adjusted. The force sensor displays and records the force value..


    Baby Cot Guardrail Compression & Pull Push Testing Machine Test Method Details

    1. Press down the center of the top fence with a force of 30kg, and press on all sides for one minute.

    2. Pull the fence slats with a force of 15kg and hold for 15 seconds.

    3. Pull out the middle layer of the fence roof with a force of 20kg, and pull the fence in all directions.

    4. Push the short face outside the center of the roof fence 30 times, pushing with a force of 30kg every 5 seconds.


    Machine structure diagram (for reference only)


    Technical Parameters

    ModelHZ-1230
    Side force cylinder force range0-300n
    Lateral position of cylinderAdjustable
    Position of electric vertical force deviceCan be adjusted arbitrarily
    Force value accuracy1%
    Control systemProgrammable controller
    Display screenTouch screen
    Number of tests, sequence of actionsCan be set arbitrarily
    Display force value, number, retention time, displacementCan be set
    Structural materialAluminum frame
